PhysicsSemiconductorsPN junctionMedium2 minQB

PhysicsMediumsingle choice

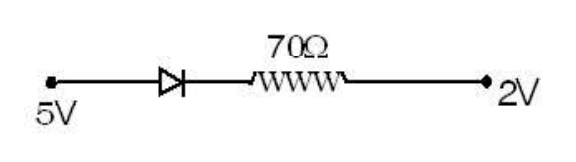

Find the current from below circuit if forward resistance of the diode is $30 Ω$ .

Circuit diagram

Answer:

Solution:

Voltage difference:

$Δ V = 5 - 2 = 3 V$

$I = \frac{3}{70 + 30} = 0.03 A$

Stream:JEESubject:PhysicsTopic:SemiconductorsSubtopic:PN junction

⏱ 2mℹ️ Source: QB
