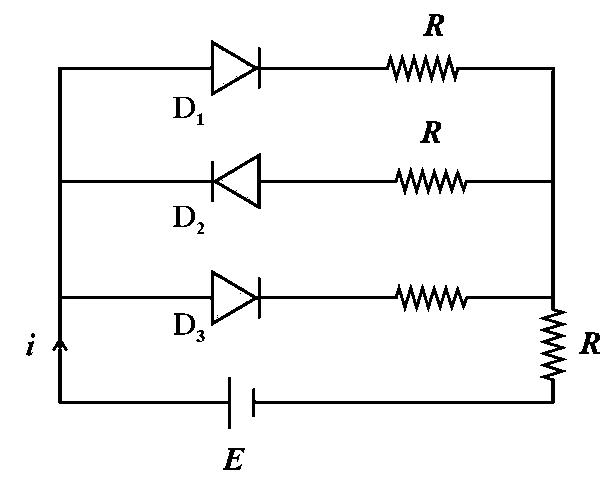

In the following circuit of PN junction diodes $D_{1}, D_{2}$ and $D_{3}$ are ideal then $i$ is

Answer:

Solution:

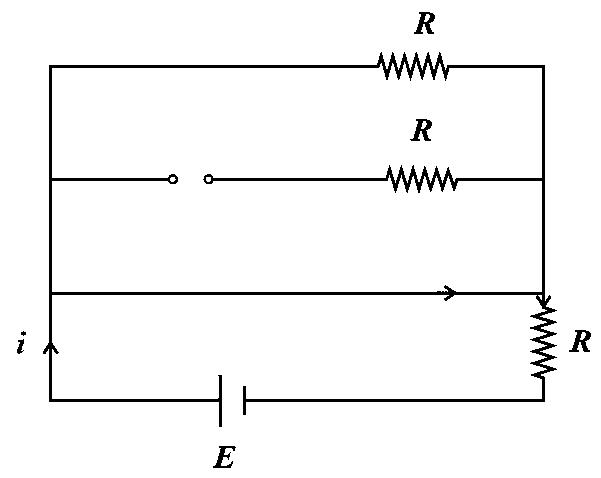

Diodes $D_{1}$ and $D_{3}$ are forward biased and $D_{2}$ is reverse biased so the circuit can be redrawn as follows.

$\Rightarrow i = \frac{E}{R}$
