PhysicsSemiconductorsLogic gatesEasy2 minPYQ_2020

PhysicsEasysingle choice

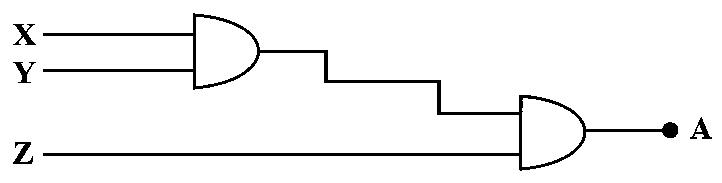

The output $A$ when all three inputs are first high and then low respectively, be

Answer:

Solution:

If $X = Y = Z = 1$

$\Rightarrow A = 1$

if $X = Y = Z = 0$

$\Rightarrow A = 0$

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:SemiconductorsSubtopic:Logic gates

⏱ 2mℹ️ Source: PYQ_2020
