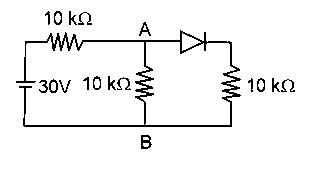

Find the potential difference between $A$ and $B as shown$ in the figure

Answer:

Solution:

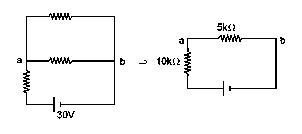

Diode is in forward bias, so it will behave as simple wire so,

So $V_{ab} = \frac{30}{5 + 10} \times 5 = 10 V$

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:SemiconductorsSubtopic:PN junction

⏱ 2mℹ️ Source: PYQ_2020
