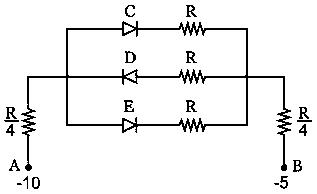

i)In this case of current will flow from B top A. No current will flow through branch C, E (as marked in figure)

$\Rightarrow R_{\text{eq}}=\frac{R}{4}+R+\frac{R}{4}=\frac{3R}{2}$

ii)Here current will flow from A to B so no current will flow in branch D

$\Rightarrow R_{\text{eq}}=\frac{R}{4}+\frac{R}{2}+\frac{R}{4}=R$

iii)Here also current will flow from A to B, so$R_{\text{eq}}=R$same as (ii)

$\Rightarrow R_{\text{ii}}=R_{\text{iii }}{\text{< R}}_{\text{i}}$
