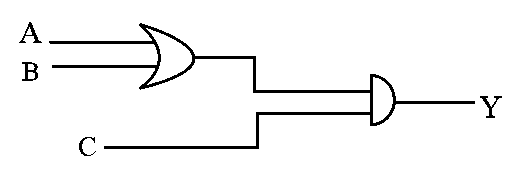

To get an output $y = 1$ in the given circuit, which of the following input is correct?

Answer:

Solution:

The Boolean expression for output of the given combination is $Y = (A + B) . C$

The truth table of the combination is

Hence, for output, $Y = 1, A = 1, B = 0$ and $C = 1$ .

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:SemiconductorsSubtopic:Logic gates
