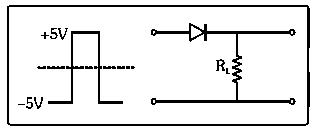

If in a p-n junction, a square input signal of $10 V$ is applied as shown, then the output across $R_{L}$ will be

NEET 2015 (Phase 1)

Answer:

Solution:

In the given circuit the P-N junction is acting as a half wave rectifier (as it is forward-bias) output will be +Ve
