Given, $A$ and $B$ are input terminals

Logic $1$ is $> 5 V$

Logic $0$ is $< 1 V$

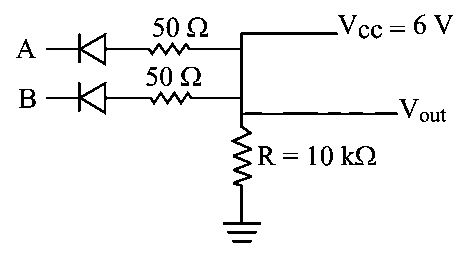

Which logic gate operation, the following circuit does?

Note: This question was awarded a bonus. $C$ option changed.

Answer:

Solution:

As $6 V$ is directly connected to the output, the output will always be one and independent of the input.
