PhysicsHardsingle choice

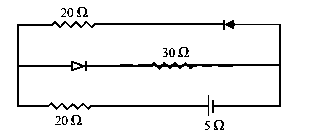

Current in the circuit will be

Answer:

Solution:

Here, diode in lower branch is forward and in upper branch is reversed biased $∴ i = \frac{5}{20 + 30} = \frac{5}{50} A$

Stream:VITEEESubject:PhysicsTopic:SemiconductorsSubtopic:PN junction

⏱ 2mℹ️ Source: PYQ_2014
