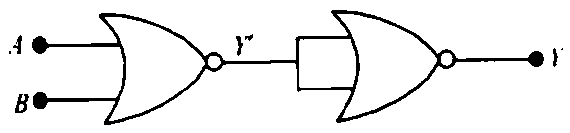

In the following circuit, the output $Y$ for all possible inputs $A$ and $B$ is expressed by the truth table.
NEET 2007

Answer:

Solution:

$Y^{'} = \overline{A + B} . Y = \overline{\overline{A + B}} = A + B$ Truth table of the given circuit is given by $A 0011 B 0101 Y^{'} 1000 Y 0111$

Stream:NEETSubject:PhysicsTopic:SemiconductorsSubtopic:Logic gates
