Physics - NLM Question with Solution | TestHub
PhysicsNLMFrictionMedium2 minQB
PhysicsMediumstatement

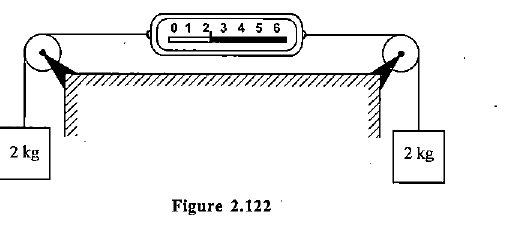

Statement I: In the arrangement shown, with a 2 kg weight hanging from each end of a string passing over the spring balance, the balance reads 2 kg.
Statement II: The tension throughout the string equals the weight of one 2 kg mass, and the balance reads the tension.
Options:
Answer:
A
Solution:
Each side hangs in equilibrium, so
N everywhere;
the balance simply measures this tension and reads 2 kg.
Both statements are true.
Option A.
Stream:JEESubject:PhysicsTopic:NLMSubtopic:Friction
⏱ 2mℹ️ Source: QB
