PhysicsNLMFBD & EquilibriumEasy2 minQB
PhysicsEasysingle choice

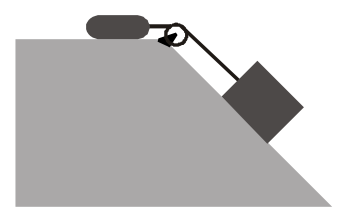

A rope, tied between a motor and a crate, can pull the crate up a hill of ice (assume no friction) at constant velocity. The free-body diagram of the crate should contain
Options:
Answer:
C

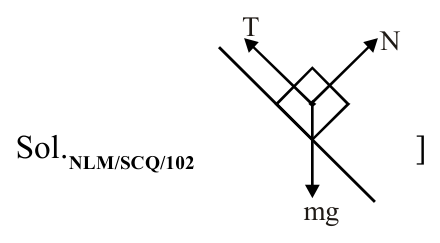

Solution:
The crate moves at constant velocity on a frictionless slope, so the net force is zero. The forces on it are: weight (down), normal reaction (perpendicular to the slope) and rope tension (up along the slope). That is three forces.
Stream:JEESubject:PhysicsTopic:NLMSubtopic:FBD & Equilibrium
⏱ 2mℹ️ Source: QB
