Match the entries of column I with column II. Given that the pulleys are massless and frictionless and four masses are of m 1 = 2 kg , m 2 = 3 kg and m 3 = m 4 = 1 kg connected with ideal stri

Question

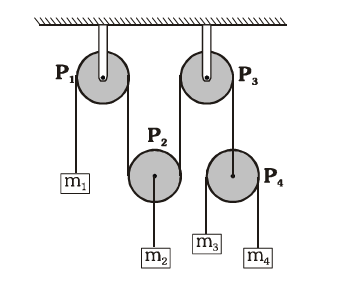

Match the entries of column I with column II. Given that the pulleys are massless and frictionless and four masses are of $m_{1} = 2 kg, m_{2} = 3 kg$ and $m_{3} = m_{4} = 1 kg$ connected with ideal strings as shown in figure.

Column I	Column II
(A) Acceleration of pulley $P_{4}$	(P) $\frac{2 g}{7}$ vertical up
(B) Acceleration of mass $m_{3}$	(Q) $\frac{12 g}{7}$ newton
(C) Tension in string attached to block of mass $m_{2}$	(R) $\frac{g}{7}$ vertical downward
(D) Acceleration of mass $m_{2}$	(S) $\frac{g}{7}$ vertical upward
	(T) $\frac{24}{7} g$ newton

TestHub · Accepted Answer

Correct answer: A
