PhysicsNLMChallenging application of NLMHard2 minQB

PhysicsHardsingle choice

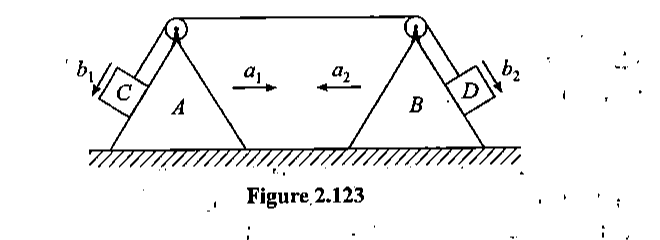

Let a1 and a2 be the accelerations of wedges A and B, respectively. Let b1 and b2 be the accelerations of blocks C and D relative to wedges A and B, respectively, all in the directions shown. Choose the right relation:

Wedges A and B with blocks C and D and acceleration directions

Options:

Answer:

Solution:

Constant string length gives

$x_{1} + x_{2} = x_{R} + x_{S}$ ;

differentiating twice,

$a_{1} + a_{2} - b_{1} - b_{2} = 0$ .

Option C.

Stream:JEESubject:PhysicsTopic:NLMSubtopic:Challenging application of NLM

⏱ 2mℹ️ Source: QB
