PhysicsNLMFBD & EquilibriumEasy2 minQB
PhysicsEasysingle choice

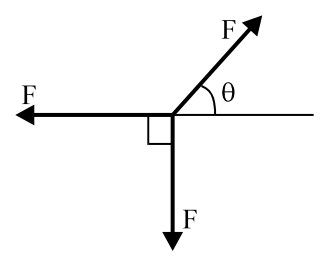

An object is acted on by three forces. All three forces have exactly the same magnitude. Two of the forces are perpendicular and the third acts at an angle as shown. No other forces act on this object. Which of the following is true :
Options:
Answer:
B
Solution:

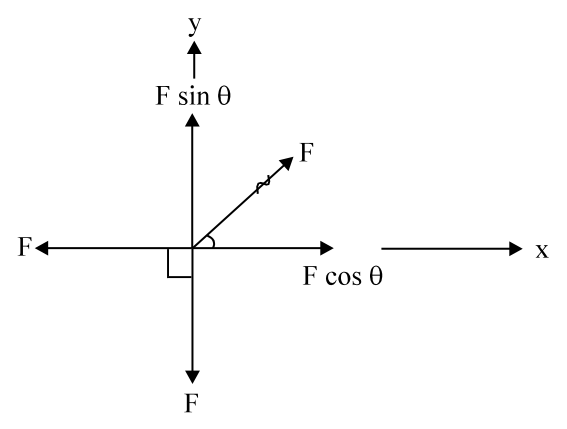

Net force can not be zero as each orthogonal components of force F can not be equal to F.
Stream:JEESubject:PhysicsTopic:NLMSubtopic:FBD & Equilibrium
⏱ 2mℹ️ Source: QB
