PhysicsNLMFBD & EquilibriumEasy2 minPYQ_2020

PhysicsEasysingle choice

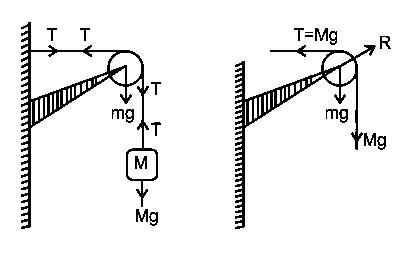

A massless string going over a clamped pulley of mass $m$ supports a block of mass $M$ as shown in the figure. The force on the pulley by the clamp is given

Options:

Answer:

Solution:

$R = \sqrt{M^{2} g^{2} + {(m + M)}^{2} g^{2}} \Rightarrow R = \sqrt{M^{2} + {(m + M)}^{2}} g$

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:NLMSubtopic:FBD & Equilibrium

⏱ 2mℹ️ Source: PYQ_2020
