Physics - Modern Physics Question with Solution | TestHub

PhysicsModern PhysicsAtomic structureMedium2 minPYQ_2022

PhysicsMediumsingle choice

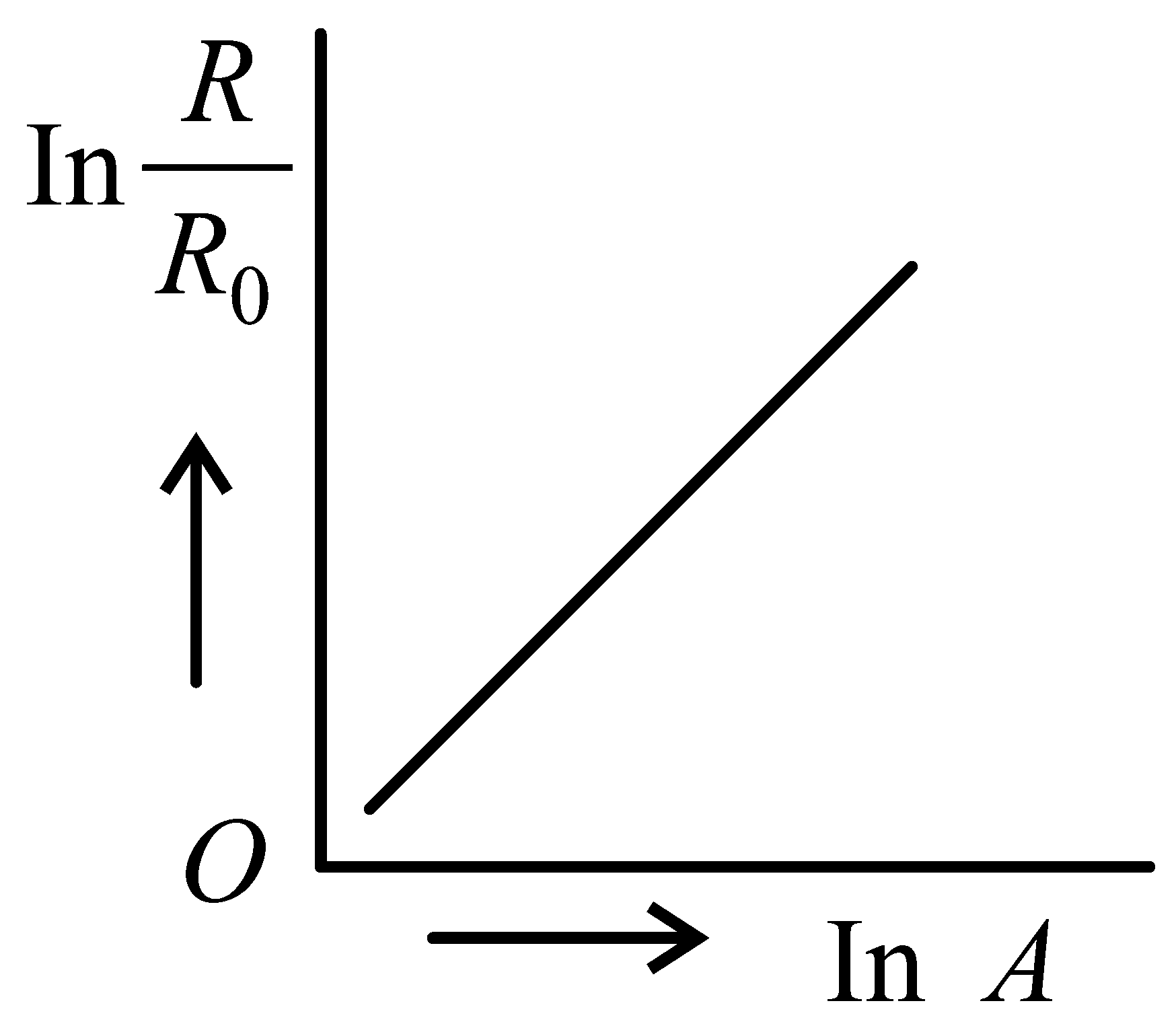

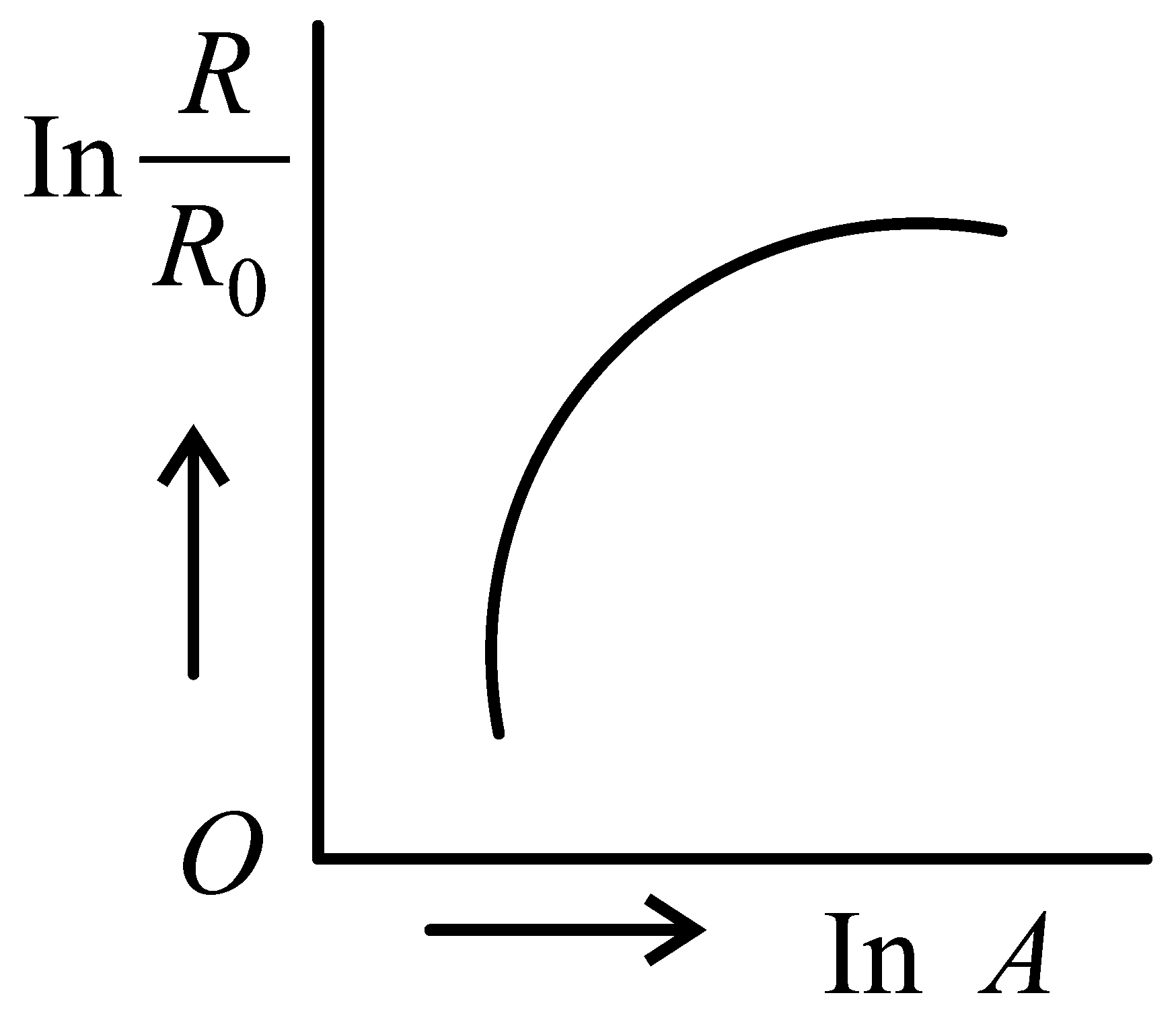

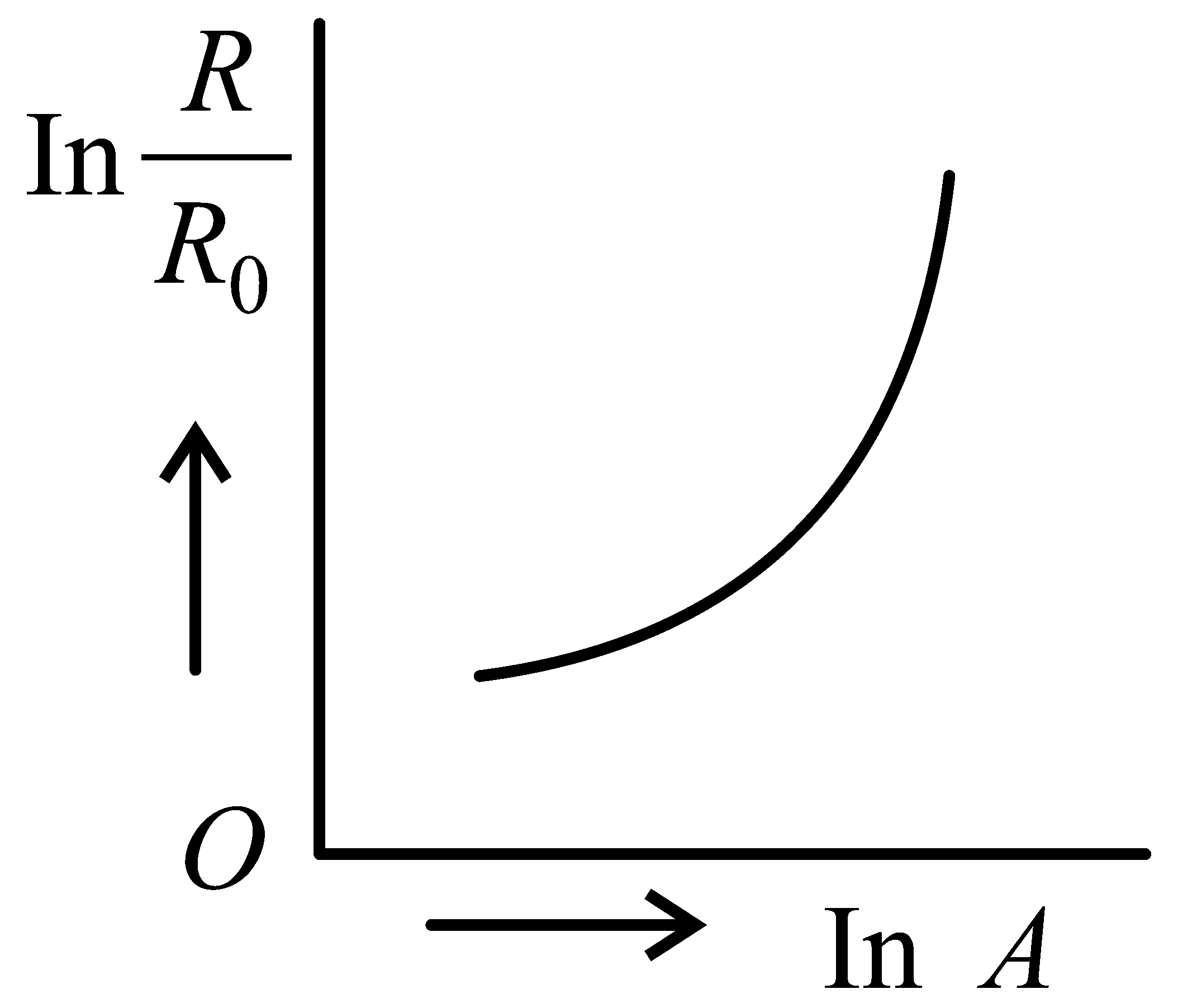

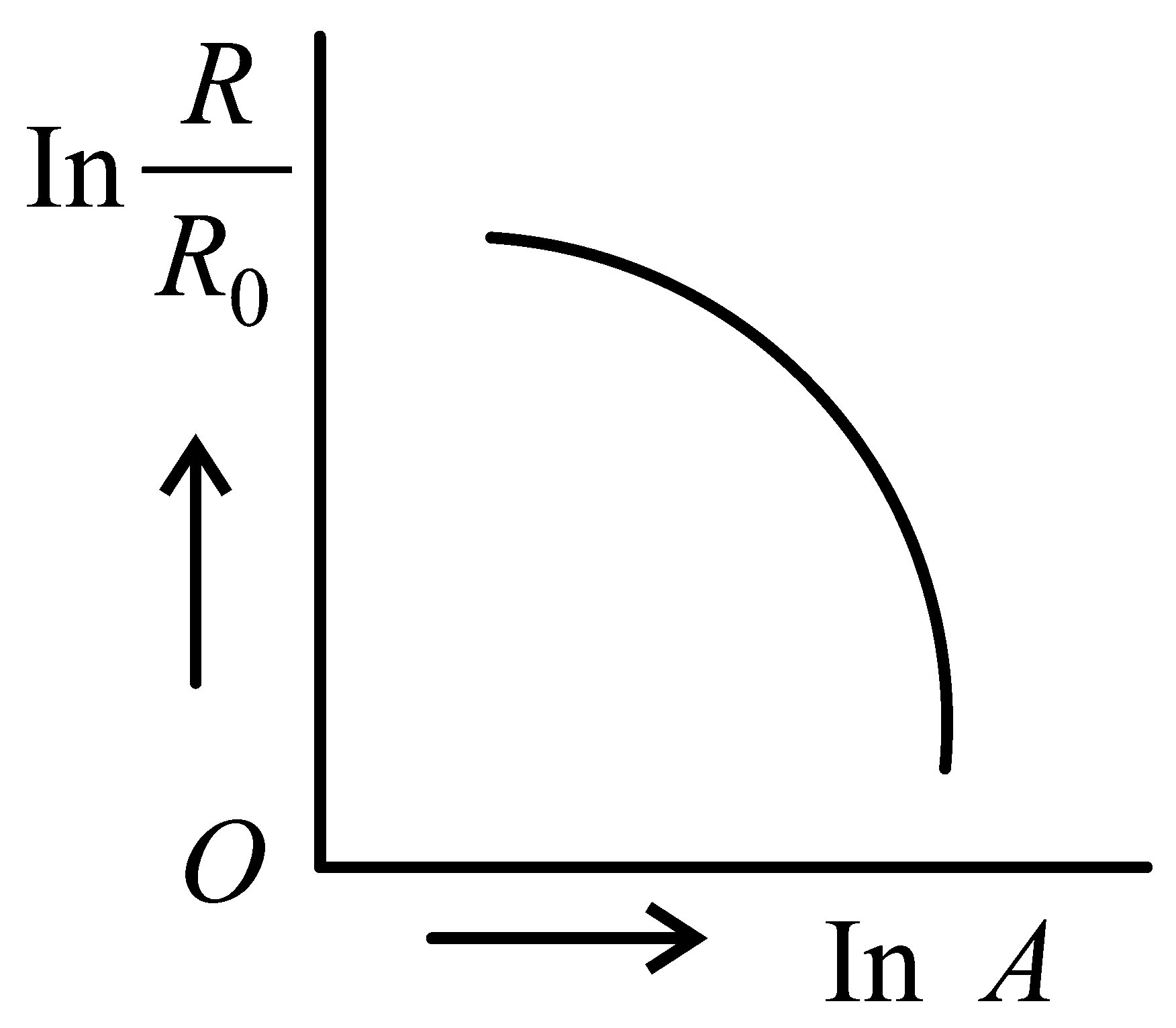

Which of the following figure represents the variation of $\ln (\frac{R}{R_{0}})$ with $\ln A$ (if $R =$ radius of a nucleus and $A =$ its mass number)

Options:

Answer:

Solution:

We know the relation between radius and atomic mass number is $R = R_{0} A^{\frac{1}{3}}$ $\Rightarrow \ln R = \ln R_{0} + \frac{1}{3} \ln A$

$\Rightarrow \ln (\frac{R}{R_{0}}) = \frac{1}{3} \ln A$
It is similar to $y = m x$ which is equation of line passing through origin.

Stream:JEESubject:PhysicsTopic:Modern PhysicsSubtopic:Atomic structure

⏱ 2mℹ️ Source: PYQ_2022
