PhysicsMagnetismMagnetic torque & energyEasy2 minPYQ_2020

PhysicsEasysingle choice

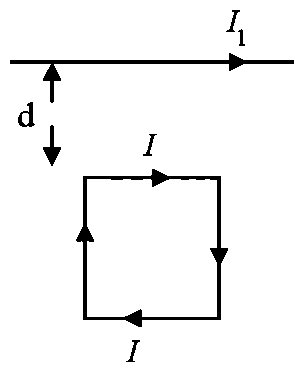

A square loop, carrying a steady current $I$ , is placed in a horizontal plane near a long straight conductor carrying a steady current $I_{1}$ at a distance d from the conductor as shown in figure. The loop will experience

Options:

Answer:

Solution:

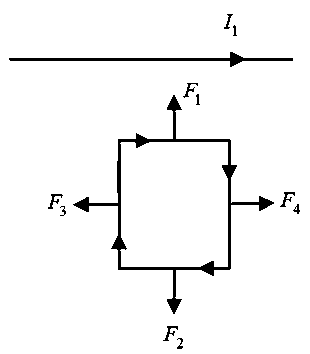

$F_{1} > F_{2}$ as $F \propto \frac{1}{d},$ and $F_{3}$ and $F_{4}$ are equal and opposite. Hence, the net attraction force will be towards the conductor.

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:MagnetismSubtopic:Magnetic torque & energy

⏱ 2mℹ️ Source: PYQ_2020
