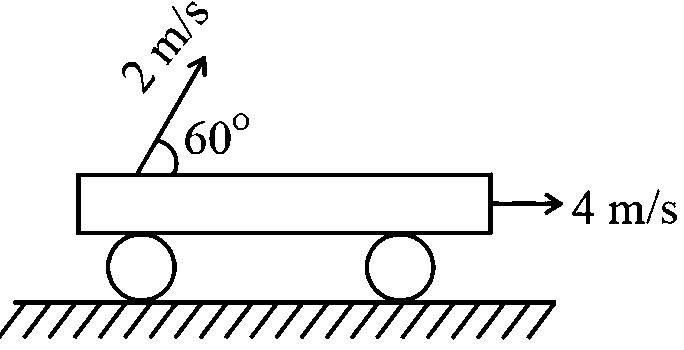

A ball is projected with a speed of $2 m s^{- 1}$ with respect to a trolley which is moving with $4 m s^{- 1}$ , as shown in the figure. The angle at which ball is projected with respect to the horizontal in ground frame is

Options:

Answer:

Solution:

${\vec{v}}_{b} = {\vec{v}}_{b T} + {\vec{v}}_{T}$

$\tan ϕ = \frac{2 \sin 60^{o}}{4 + 2 \cos 60^{o}} = \frac{\sqrt{3}}{5}$

$\sin ϕ = \sqrt{\frac{3}{28}}$

$ϕ = \sin^{- 1} (\sqrt{\frac{3}{28}})$
