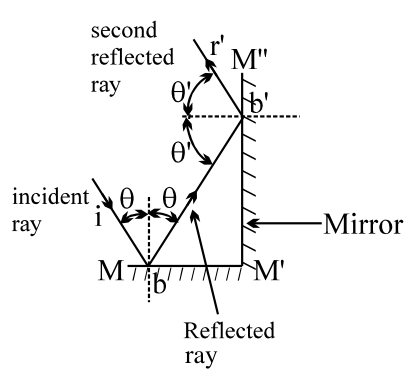

A ray of light strikes a corner reflector as shown in figure. As the angle of incidence is increased, the angle between the final reflected ray and the incident ray
Options:
Answer:
C
Solution:
The two mirrors are perpendicular.
After two reflections the ray is turned by .
The final ray is antiparallel to the incident ray for every .
The angle between them stays the same.
Ans. (C)
