Physics - Fluid Question with Solution | TestHub

PhysicsFluidViscosityMedium2 minPYQ_2023
PhysicsMediumnumerical

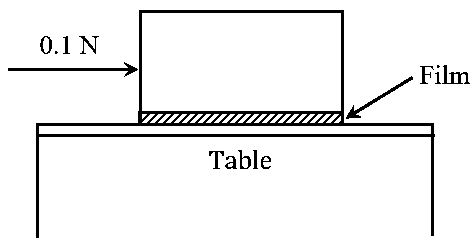

A metal block of base area 0.20 m2 is placed on a table, as shown in figure. A liquid film of thickness 0.25 mm is inserted between the block and the table. The block is pushed by a horizontal force of 0.1 N and moves with a constant speed. If the viscosity of the liquid is 5.0×103 Pl, the speed of block is ______ ×10-3 m s-1.



Question diagram: A metal block of base area 0 . 20 m 2 is placed on a table,
Answer:
25.00
Solution:

Viscous force is given by,

|F|=ηAΔvΔh

0.1=5×10-3×0.2×v0.25×10-3

v=0.025 m s-1

v=25×10-3 m s-1

Stream:JEESubject:PhysicsTopic:FluidSubtopic:Viscosity
2mℹ️ Source: PYQ_2023
