PhysicsEMI/ACL-R circuitMedium2 minPYQ_2022
PhysicsMediumnumerical

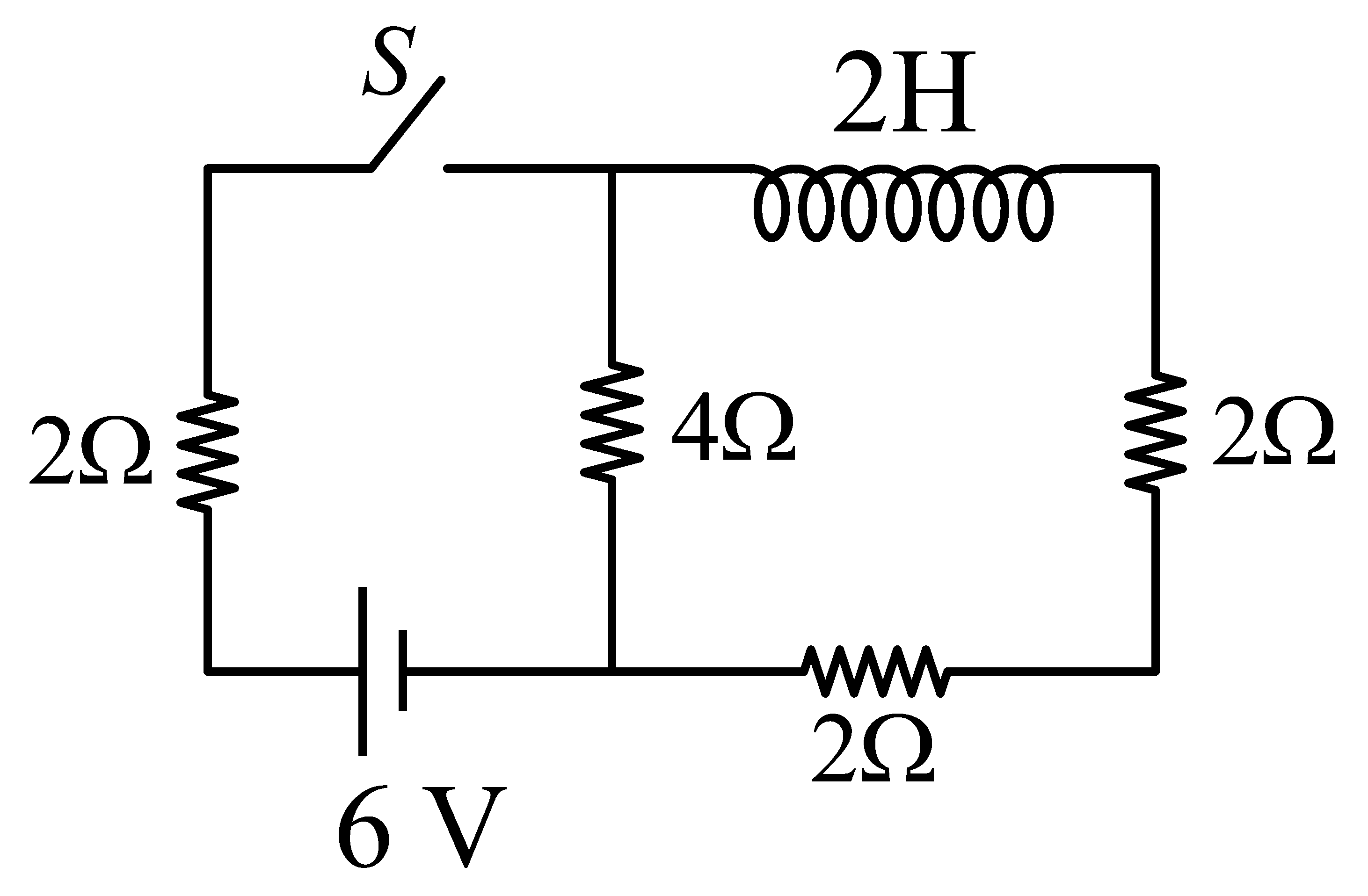

For the given circuit the current through battery of 6 V just after closing the switch 'S' will be _____ A.

​​​​​​​

Question diagram: For the given circuit the current through battery of 6 V jus
Answer:
1.00
Solution:

Just after closing the switch S, inductor behaves like an open circuit, so no current will flow through 2 Ω resistors.

Thus, current through the circuit is I=62+4=1 A (Here 2 Ω and 4 Ω resistors are in series).

Stream:JEESubject:PhysicsTopic:EMI/ACSubtopic:L-R circuit
2mℹ️ Source: PYQ_2022
