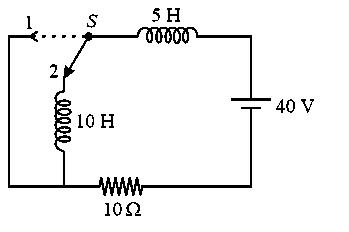

In the circuit shown in the figure, the switch was kept in $p o s i t i o n - 1$ for a very long time and then at $t = 0$ it is shifted to $p o s i t i o n - 2$ . The current in the circuit immediately after that is $i = \frac{a}{b} A$ , then the value of $a + b$ is

Answer:

7.00

Solution:

The total flux, before and after the position change of the switch, remains the same

$L_{1} i_{1} = L_{2} i_{2}$

$L_{1} = 5 H$ , $i_{1} = 4 A$ and $L_{2} = 15 H$

$5 \times 4 = 15 \times i$

$\Rightarrow i = \frac{4}{3} = \frac{a}{b}$

$\Rightarrow a + b = 7$
