Physics - Electrostatics Question with Solution | TestHub

PhysicsElectrostaticsMiscellaneousEasy2 minPYQ_2020

PhysicsEasysingle choice

Seven capacitors each of capacitance $2 μ F$ are connected in a configuration to obtain an effective capacitance $\frac{10}{11} μ F .$ Which of the following combination will achieve the desired result?

Options:

Answer:

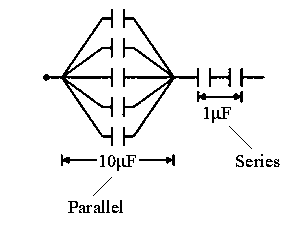

Solution:

In series, $C = \frac{C_{1} C_{2}}{C_{1} + C_{2}}$

and in parallel, C_eq= C₁+ C₂+ C₃.....

${∴ C}_{net} = \frac{(10) (1)}{10 + 1} = \frac{10}{11} μ F$

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:ElectrostaticsSubtopic:Miscellaneous

⏱ 2mℹ️ Source: PYQ_2020
