PhysicsElecrostaticsPotential & potential energyMedium2 minPYQ_2023
PhysicsMediumsingle choice

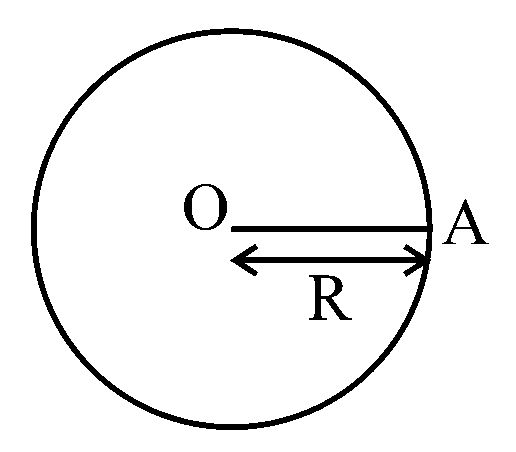

For a uniformly charged thin spherical shell, the electric potential V radially away from the centre O of shell can be graphically represented as

Question diagram: For a uniformly charged thin spherical shell, the electric p

Options:

Answer:
B
Solution:

The potential is constant inside the sphere as the electric field is zero inside the sphere. So, the value is given by

V=Q4πε0R for r<R

The potential at the surface is

V=Q4πε0R

The potential outside the sphere starts decreasing and is given by the formula

V=Q4πε0r for r>R

Stream:JEESubject:PhysicsTopic:ElecrostaticsSubtopic:Potential & potential energy
2mℹ️ Source: PYQ_2023
