The network shown consists of an infinitely large number of identical sections. Resistance of each branch is $R = 3 Ω$ . If equivalent resistance of the whole network between A and B is n $Ω$ , find n.
Answer:
1
Solution:
Using mirror symmetry drawing in two D plane

Question

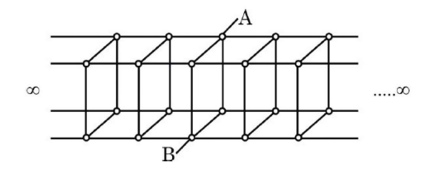

The network shown consists of an infinitely large number of identical sections. Resistance of each branch is $R = 3 Ω$ . If equivalent resistance of the whole network between A and B is n $Ω$ , find n. Screenshot 2026-09-08 002037.png

Answer:

1

Solution:

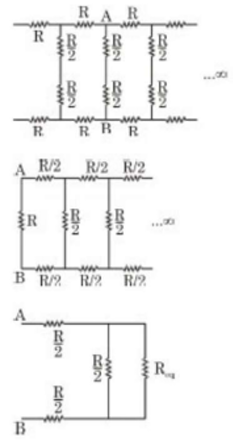

Using mirror symmetry drawing in two D plane

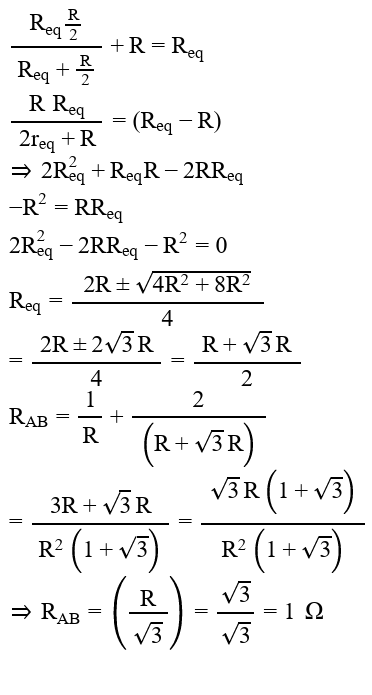

Screenshot 2026-09-08 002158.png

Screenshot 2026-09-08 002241.png

TestHub · Accepted Answer

Using mirror symmetry drawing in two D plane
