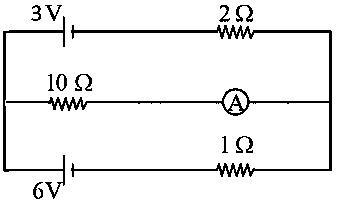

The ammeter reading in the given circuit is

Options:

Answer:

Solution:

$E_{e q} = \frac{3 \times 1 + 6 \times 2}{1 + 2} = 5 V, r_{e q} = \frac{2 \times 1}{2 + 1} = \frac{2}{3} Ω$

$I = \frac{5}{10 + 2 / 3} = \frac{15}{32} A$

Stream:JEESubject:PhysicsTopic:Current ElectricitySubtopic:Electrical instrument
