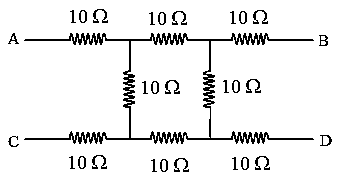

What will be the equivalent resistance of circuit shown in figure between two points $A$ and $D$ ?

Answer:

Solution:

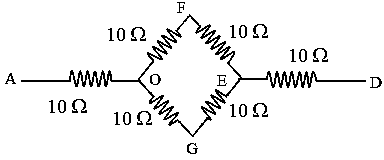

Equivalent Circuit

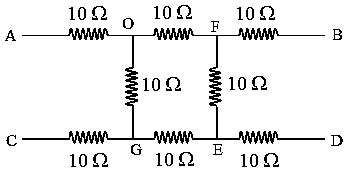

Equivalent Resistance of circuit
$= 10 + \frac{20 \times 20}{20 + 20} + 10 = 10 + 10 + 10 = 30 Ω$
