PhysicsCurrent ElectricityCircuit AnalysisEasy2 minPYQ_2020

PhysicsEasysingle choice

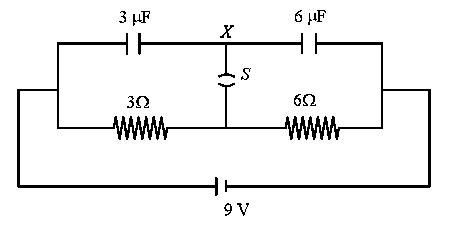

A circuit is connected as shown in the figure with switch $S$ open. When the switch is closed, the total amount of charge that flows from $Y$ to $X$ is

Options:

Answer:

Solution:

From $Y$ to $X$ charge flows to plates $a$ and $b$ .
${(q_{a} + q_{b})}_{i} = 0, {(q_{a} + q_{b})}_{f} = 27 μC$

$∴$ $27 μ C$ charge flows from $Y$ to $X$ .

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:Current ElectricitySubtopic:Circuit Analysis

⏱ 2mℹ️ Source: PYQ_2020
