PhysicsCurrent ElectricityEquivalent ResistanceHard2 minPYQ_2019
PhysicsHardsingle choice

Space between two concentric conducting spheres of radiiaandb(b>a)is filled with a medium of resistivity ρ. The resistance between the two spheres will be:

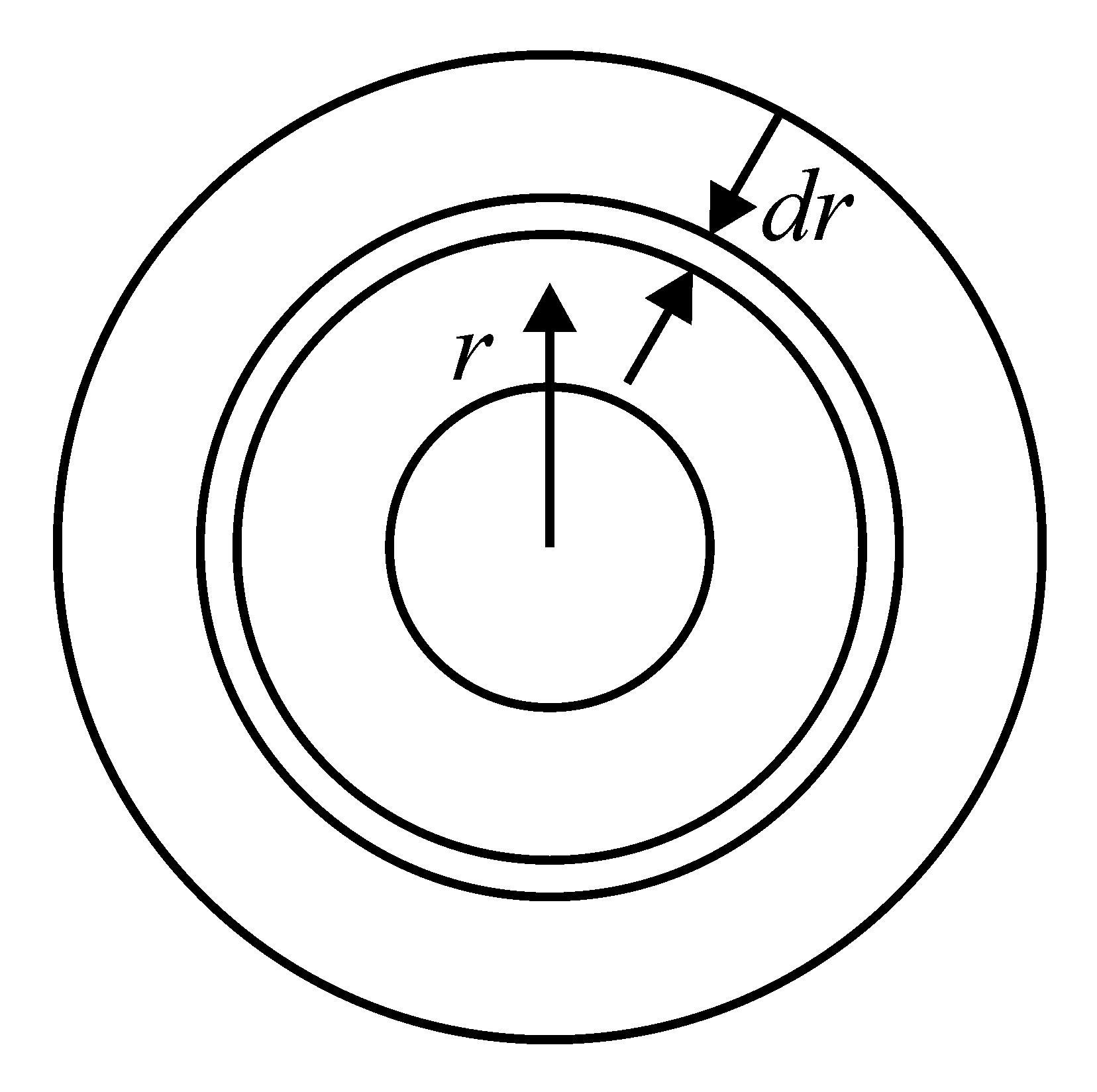

Question diagram: Space between two concentric conducting spheres of radii a a

Options:

Answer:
C
Solution:

Consider small volume element between r and r+dr
Resistance of this volume along rational directions,
dR=ρdr4πr2
As all element resistance are in series,
R=r=ar=bρdr4πr2=ρ4π-1rr=ar=b=ρ4π1a-1b

Stream:JEESubject:PhysicsTopic:Current ElectricitySubtopic:Equivalent Resistance
2mℹ️ Source: PYQ_2019
