The resistance of an ammeter is 13Ω and its scale is graduated for a current upto 100 amps. After an additional shunt has been connected to this ammeter it becomes possible to measure currents upto 750 amperes by this meter. The value of shunt-resistance is:NEET 2007

TestHub · Accepted Answer

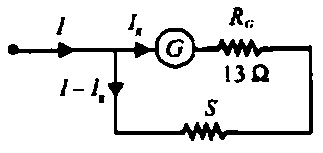

Let the shunt resistance be S. ​ Given: I = 750 A , I g ​ = 100 A , R G ​ = 13Ω From the figure, I g ​ R G ​ = ( I − I g ​ ) S or 100 × 13 = [ 750 − 100 ] S or 1300 = 650 S ∴ S = 1300/650 = 2Ω. ​

Physics - Current Electricity Question with Solution | TestHub

Options:
