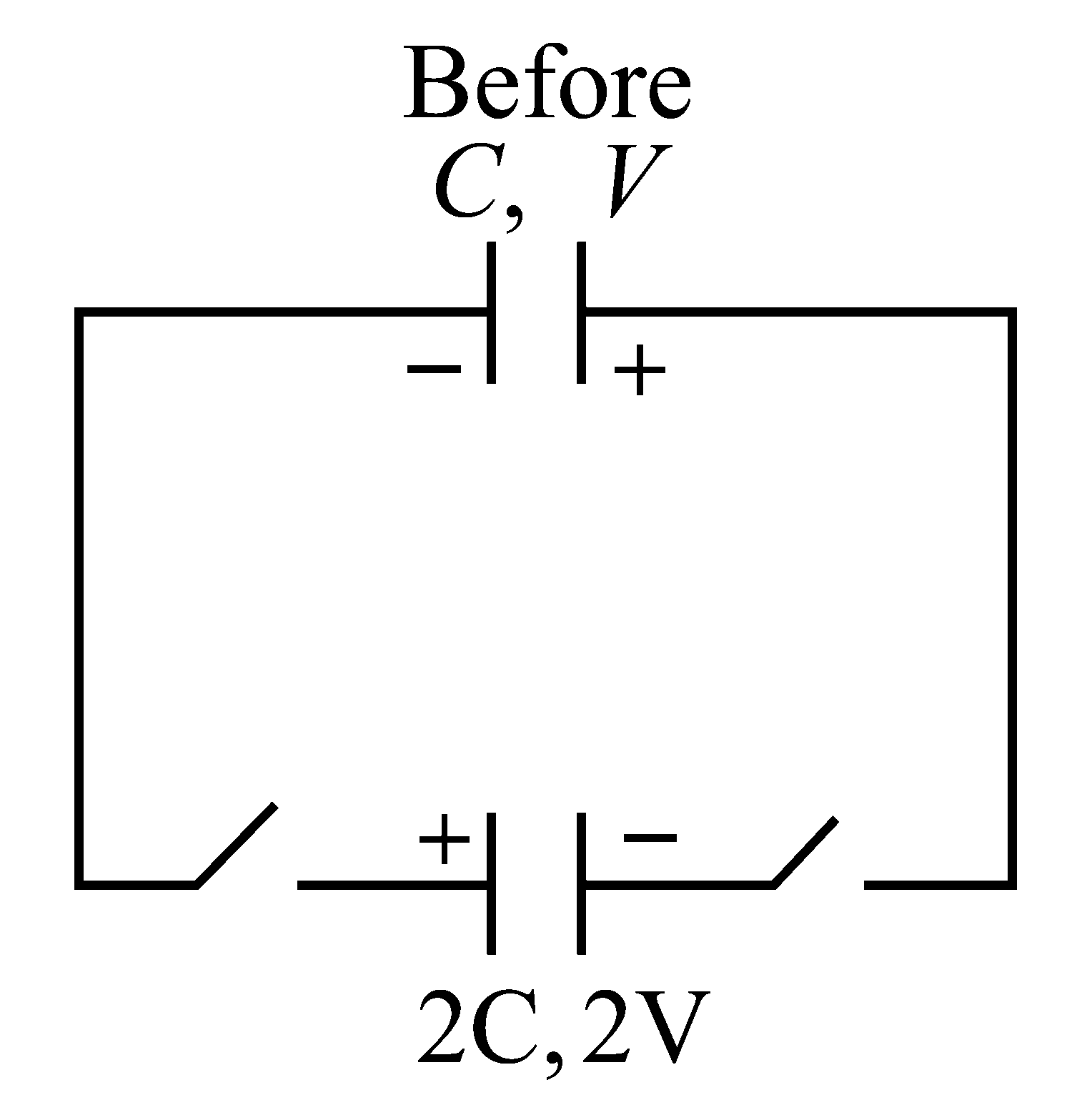

Two capacitors of capacitances C and 2 C are charged to potential differences V and 2 V , respectively. These are then connected in parallel in such a manner that the positive terminal of one is connected to the negative terminal of the other. The final energy of this configuration is :

TestHub · Accepted Answer

Charge on C = C V Charge on 2 C = 2 C 2 V From charge conservation, 2 C ( 2 V ) - C V = ( C + 2 C ) V ' Common potential, V ' = V Final energy, U f = 1 2 C V 2 + 1 2 × 2 C V 2 = 3 2 C V 2
