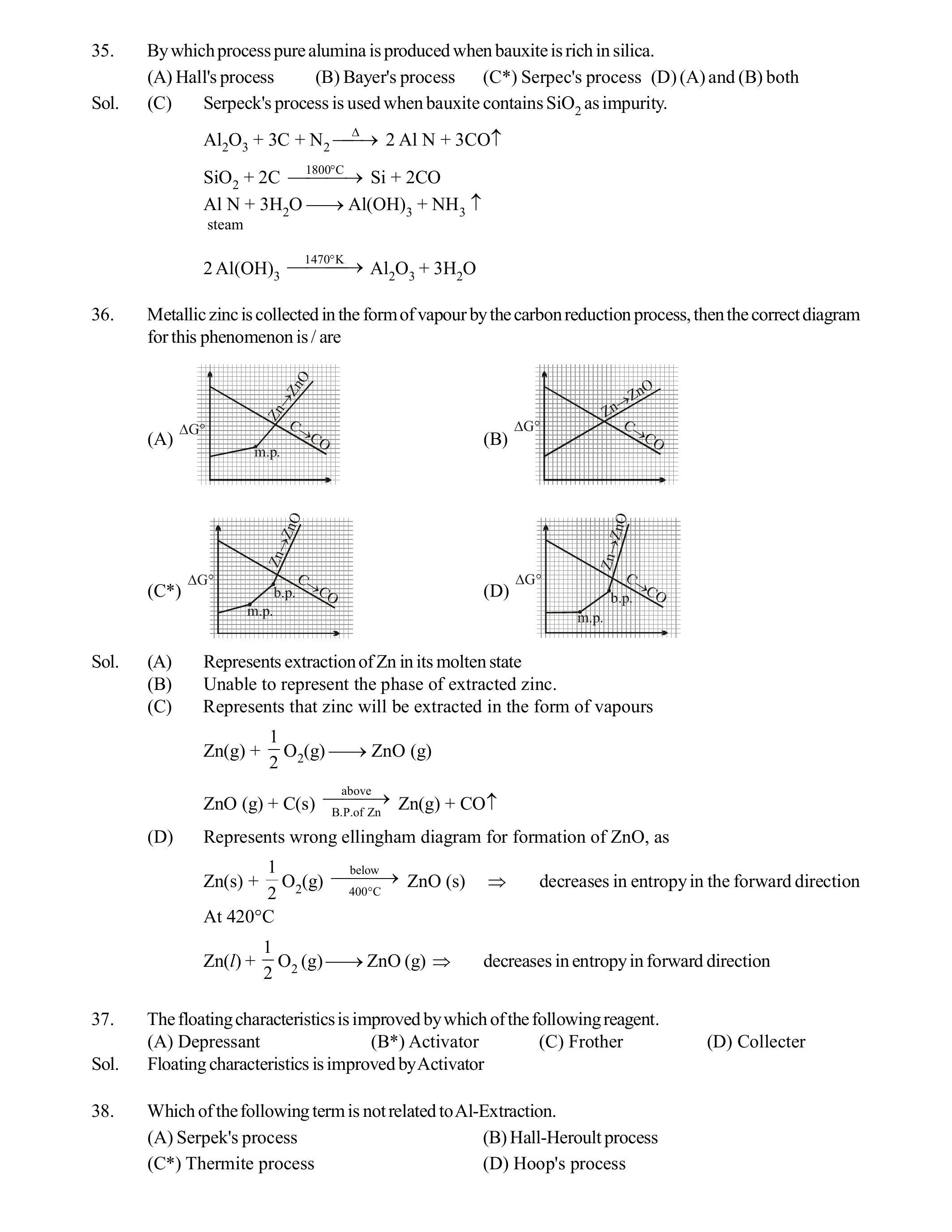

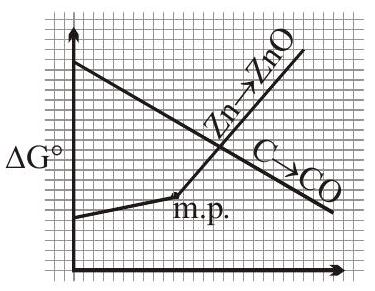

(A) Represents extraction of Zn in its molten state

(B) Unable to represent the phase of extracted zinc.

(C) Represents that zinc will be extracted in the form of vapours

$\mathrm{Zn}(\mathrm{g})+\frac{1}{2}{\mathrm{O}}_2(\mathrm{g})⟶\mathrm{ZnO}(\mathrm{g})$

$\mathrm{ZnO}(\mathrm{g})+\mathrm{C}(\mathrm{s})\underset{\text{ B.P.of }\mathrm{Zn}}{\overset{\text{ above }}{\to }}\mathrm{Zn}(\mathrm{g})+\mathrm{CO}\uparrow$

(D) Represents wrong ellingham diagram for formation of ZnO , as
$\mathrm{Zn}(\mathrm{s})+\frac{1}{2}{\mathrm{O}}_2(\mathrm{g})\underset{400^{\circ }\mathrm{C}}{\overset{\text{ below }}{\to }}\mathrm{ZnO}(\mathrm{s})\Rightarrow$ decreases in entropy in the forward direction At $420^{\circ }\mathrm{C}$ $\mathrm{Zn}(l)+\frac{1}{2}{\mathrm{O}}_2(\mathrm{g})⟶\mathrm{ZnO}(\mathrm{g})\Rightarrow$ decreases in entropy in forward direction
